SERVICE MOLD + AEROSPACE IS A PREFERRED SUPPLIER TO LEADING AEROSPACE, AUTOMOTIVE, MEDICAL AND COMMERCIAL SECTOR FIRMS THROUGHOUT NORTH AMERICA AND EUROPE. WE DESIGN AND MANUFACTURE INJECTION MOLDS, COMPRESSION MOLDS, LOW-PRESSURE INJECTION MOLDS, BLOW MOLDS, GLASS-ENCAPSULATION MOLDS AND LOW-PRESSURE FORMING MOLDS.

HAVE A PROJECT ALREADY TO GO?

GIVE US A CALL OR DROP US AN EMAIL. WE’LL ANSWER ALL YOUR QUESTIONS.

519.945.3344

About

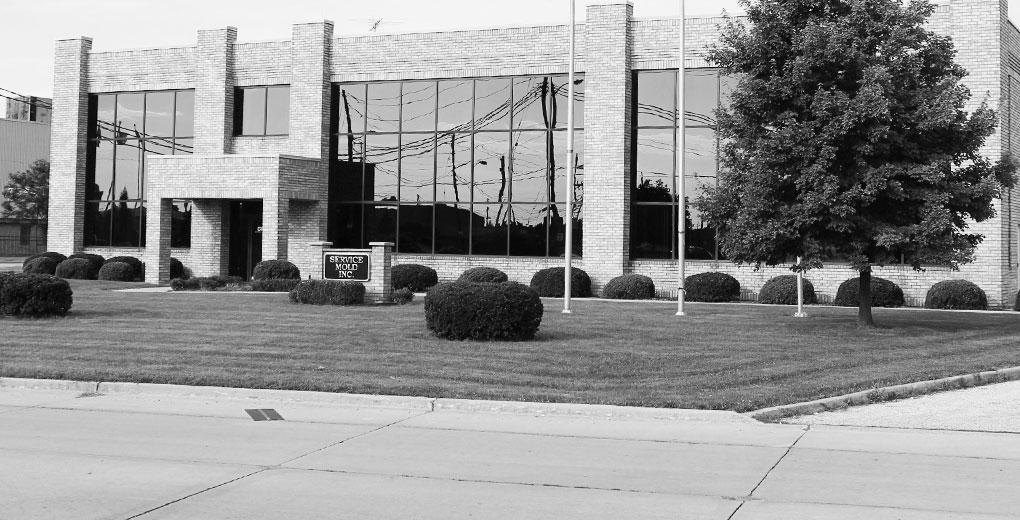

ESTABLISHED IN 1987, SERVICE MOLD + AEROSPACE IS LED BY A MANAGEMENT TEAM WITH MORE THAN A CENTURY OF COMBINED EXPERTISE. BECAUSE OF OUR EXPERTISE AND COMMITMENT TO QUALITY AND SERVICE, WE HAVE BECOME A PREFERRED SUPPLIER OF MOLDS AND PRECISION MACHINING TO LEADING AEROSPACE, AUTOMOTIVE, MEDICAL AND COMMERCIAL SECTOR FIRMS IN NORTH AMERICA AND EUROPE.


DESIGN

The in-house design department utilizes state of the art design software to provide 3D Product and 3D Mold Design services typically not available from most mold-makers. Our innovative team focuses on quality product design and development. We give our customers a quality product and tool and we are capable of all ranges of design management, from single part design to complex parts design.

MANUFACTURE

Service Mold + Aerospace facility has state-of-the-art 3-axis and 5-axis high-speed machines capable of 2300 IPM machine feedrate and 30000 RPM spindle speeds. Every machine is operated by our highly skilled machinists using the latest “Computer Aided Machining” CAM software, high-end tooling such as balanced “shrink-fit” tool holders and high performance, high-feed cutters and coated endmills.

Certifications

SERVICE MOLD + AEROSPACE

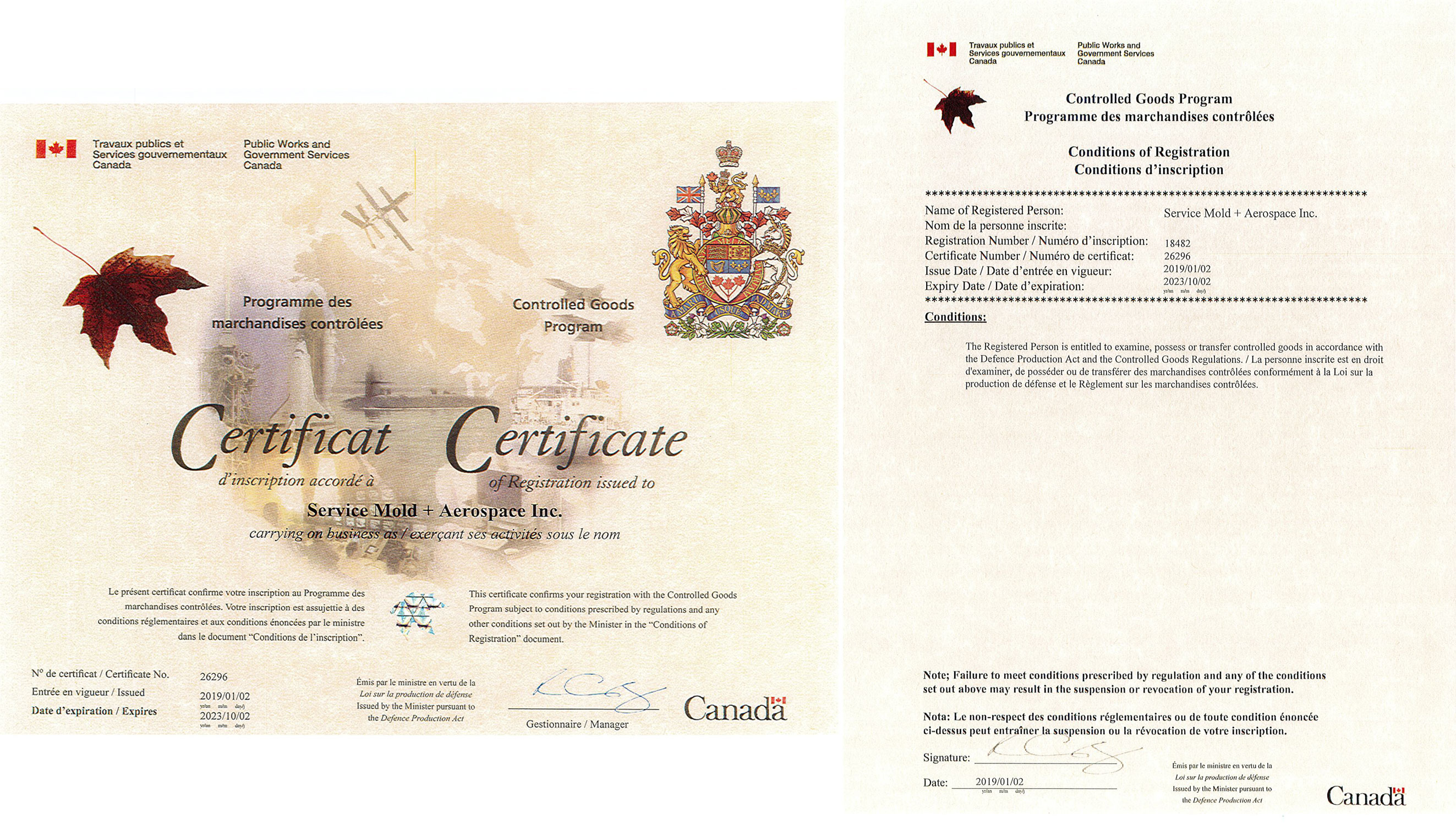

We are a Controlled Goods Program certified, ITAR compliant company.

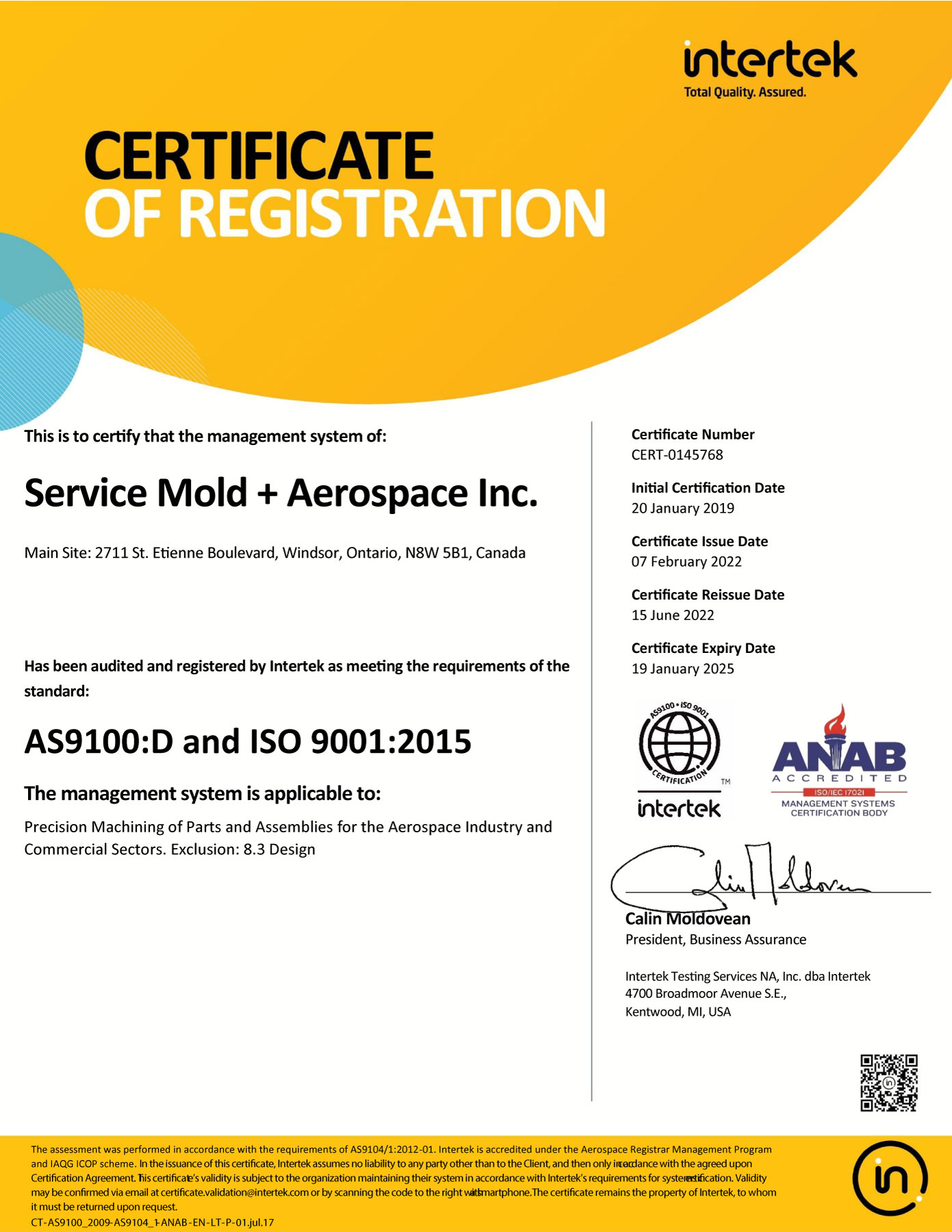

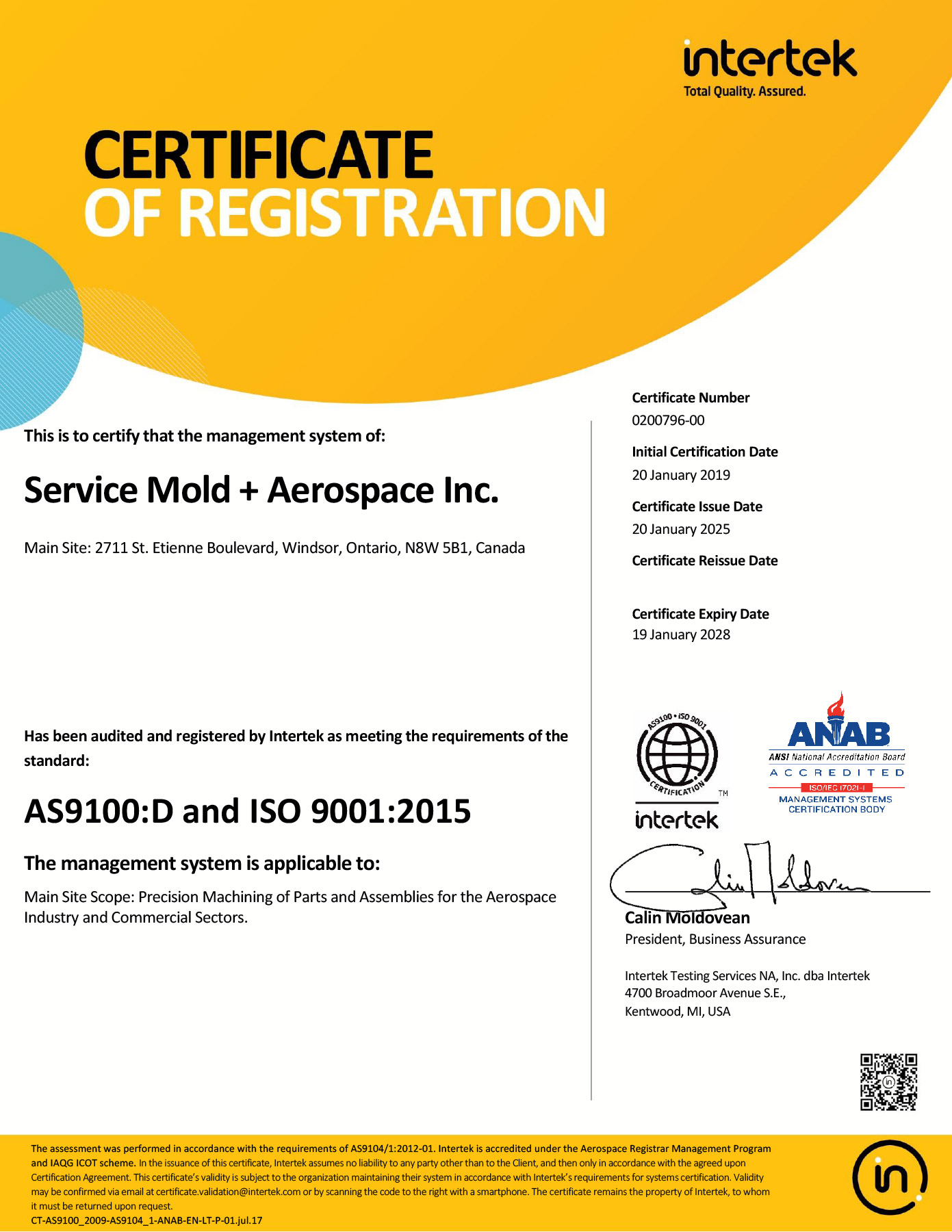

ISO 9001:2015 + AS9100D


ISO 9001:2015


Certificate of Registration


ITAR

Equipment

5-AXIS HIGH SPEED

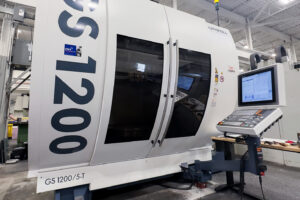

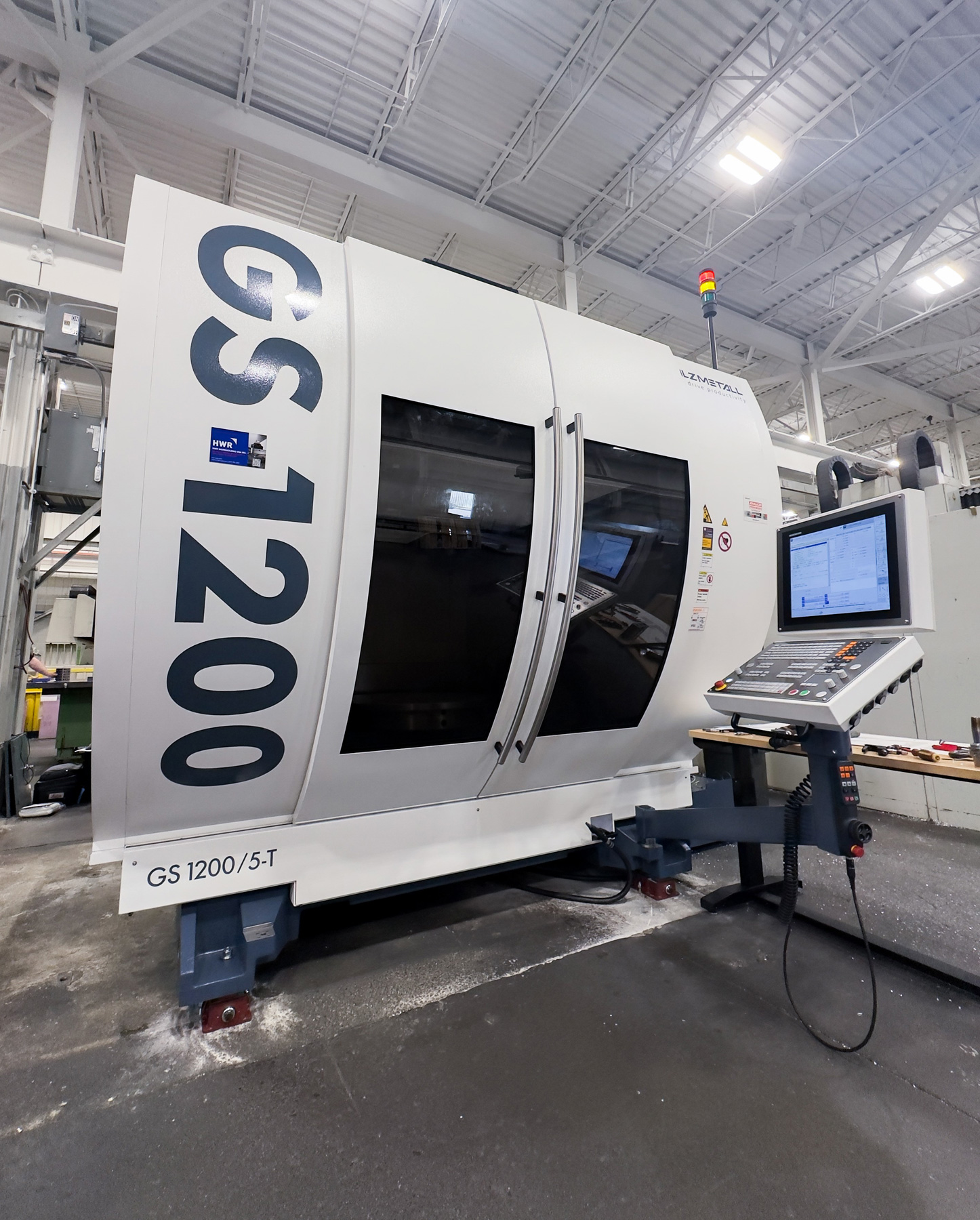

Alzmetall GS 1200 5 Axis

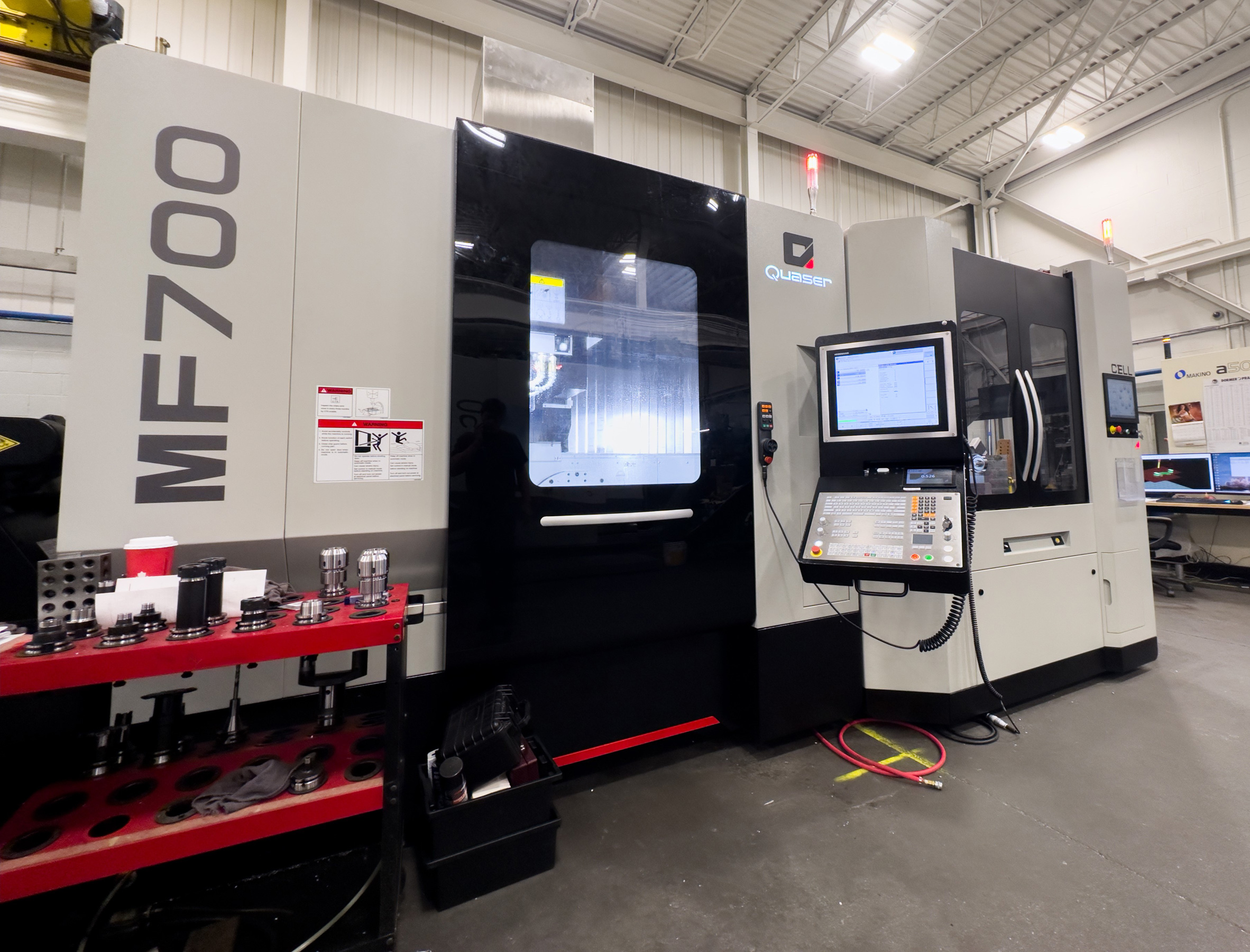

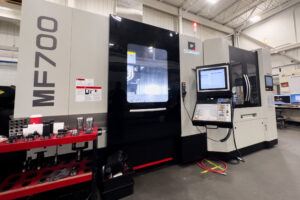

Quaser MF700 5 Axis

X 32.2 / Y 22.4” / Z 20.86”
Table: X 25.5” / Y 25.5”
Load Capacity: 1102lbs
Max RPM/IPM: 12000/ 1417

Quaser MF700 5 Axis

Alzmetall GS 1200 5 Axis

X 39.37” / Y 47.24” / Z 31:49”
Table: X 43.3” / Y 47.2”
Load Capacity: 6613lbs
Max RPM/IPM: 12000/ 2952

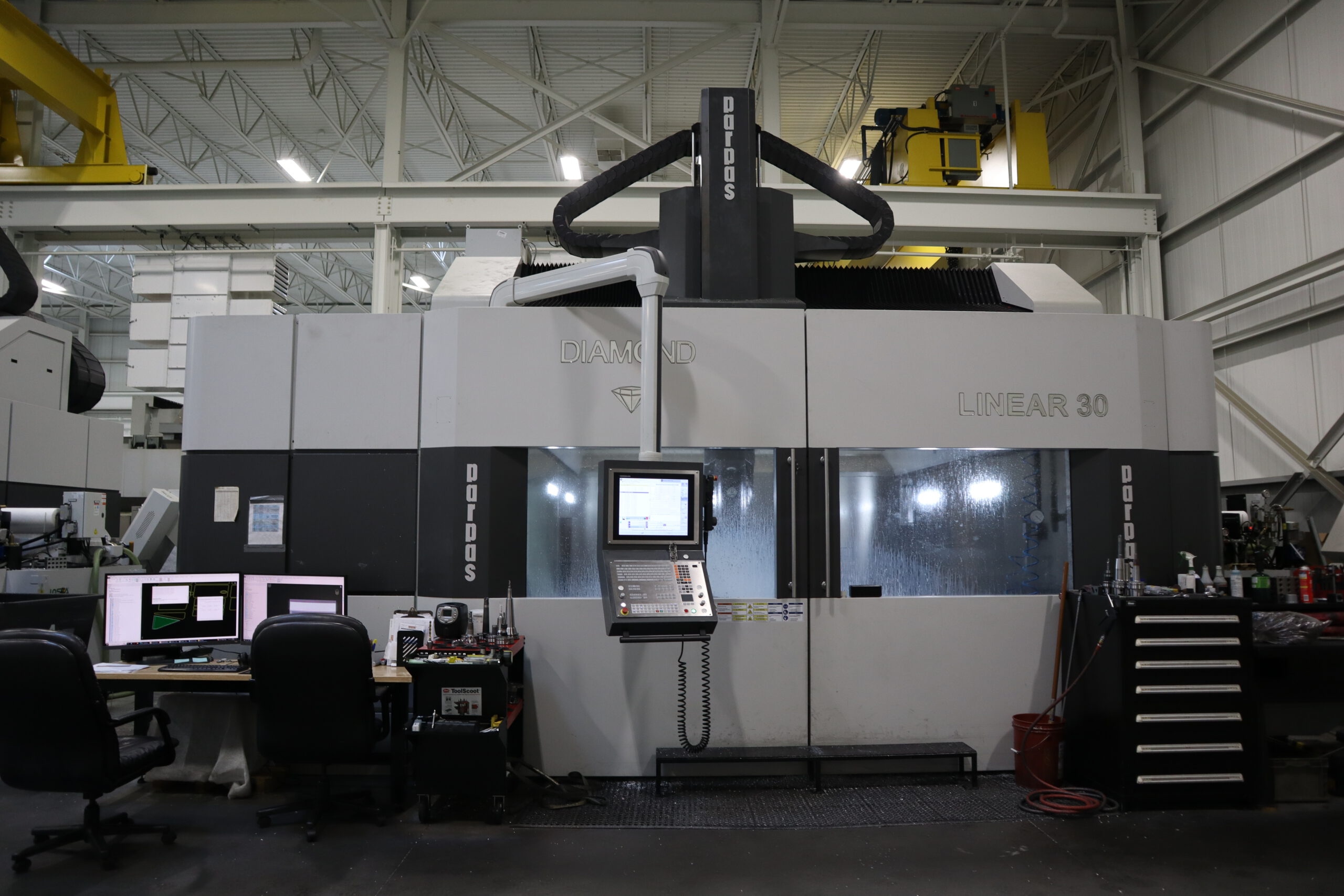

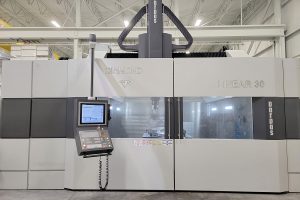

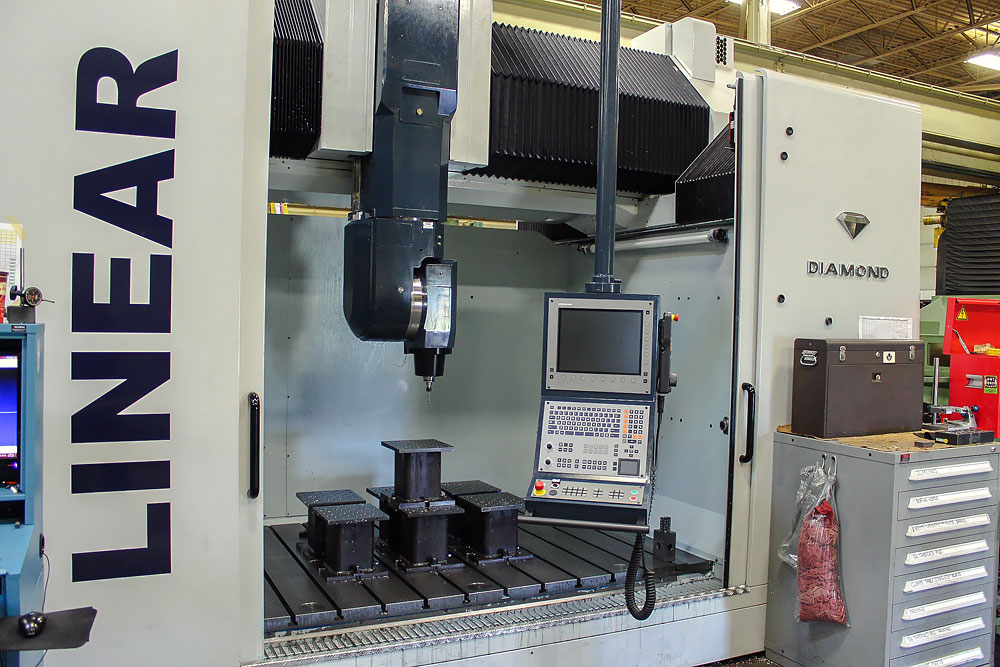

Parpas Diamond Linear 30 #1

Parpas Diamond Linear 30 #1

X 118” / Y 102.3 “ / Z 47.34”
Table: X 110.23” / Y 112”
Load Capacity: 80,000lbs

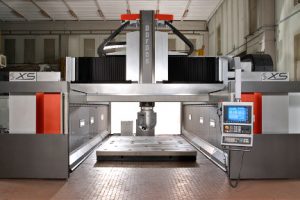

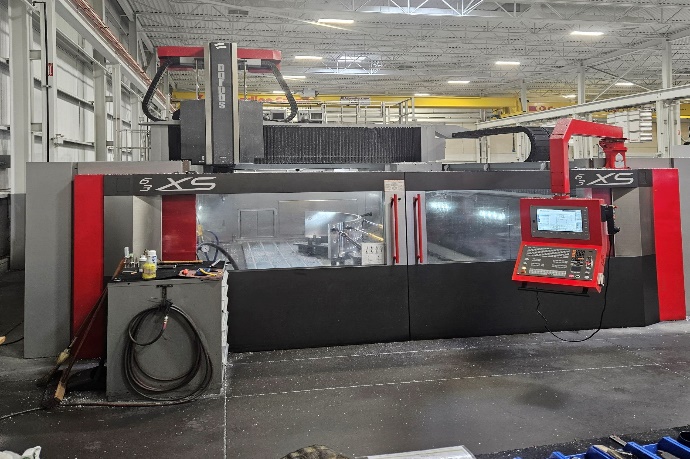

Parpas 63 XS

Parpas 63 XS

X 236.25″ / Y 126″ / Z 59″
Table: X 236.22″ / Y 98.42″
Load Capacity: 3,072.24lbs

Parpas Diamond Linear 30 #2

Parpas Diamond Linear 30 #2

X 118″ / Y 102.3″ / Z 47.34″
Table: X 110.23″ / Y 47.34″
Load Capacity: 80,000lbs

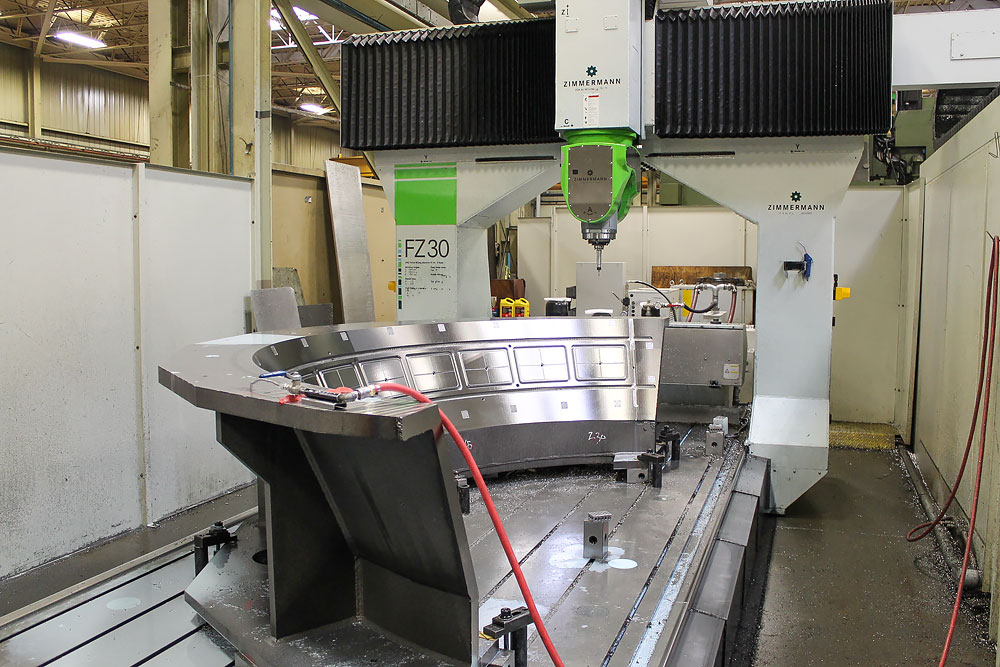

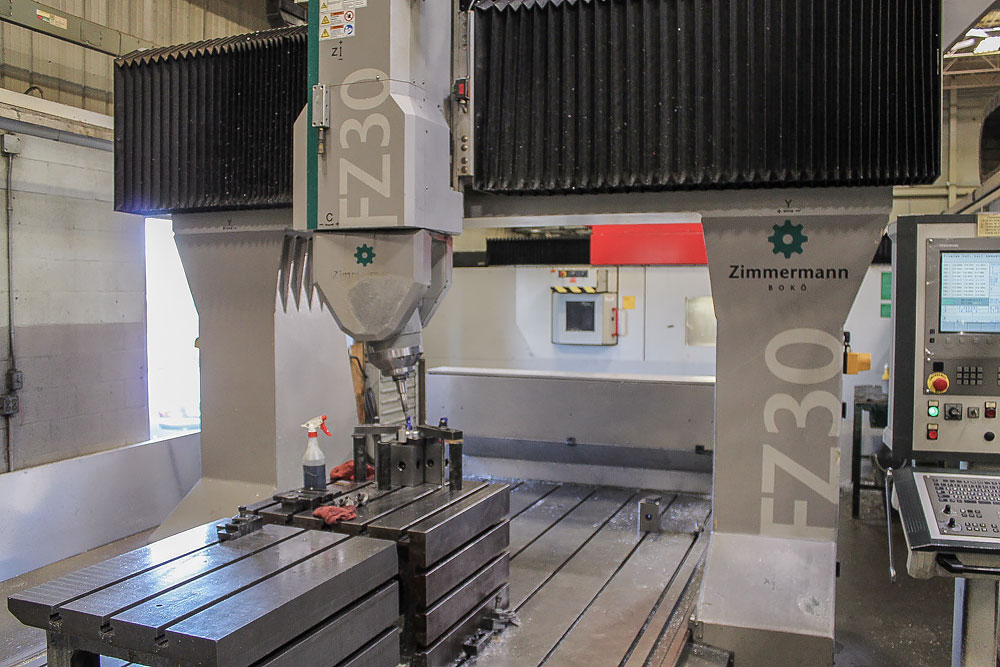

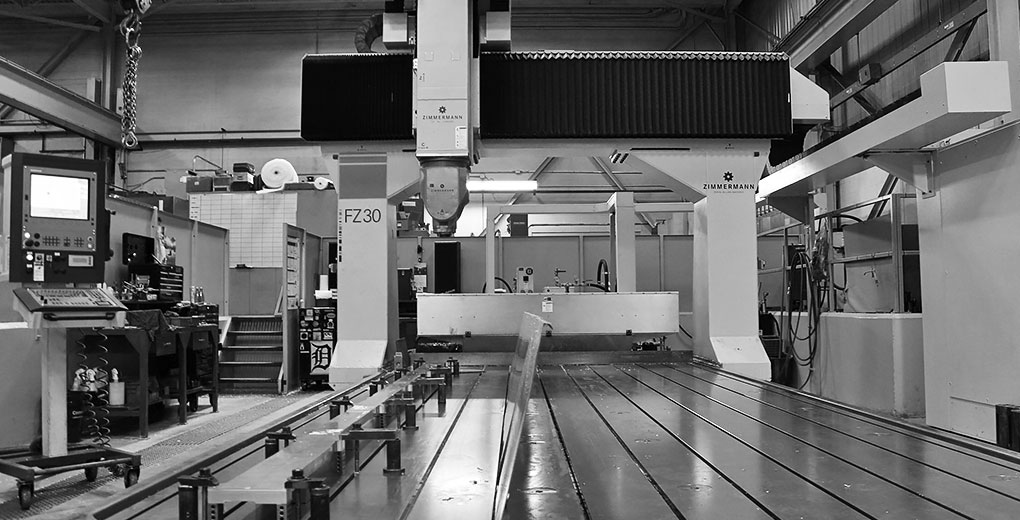

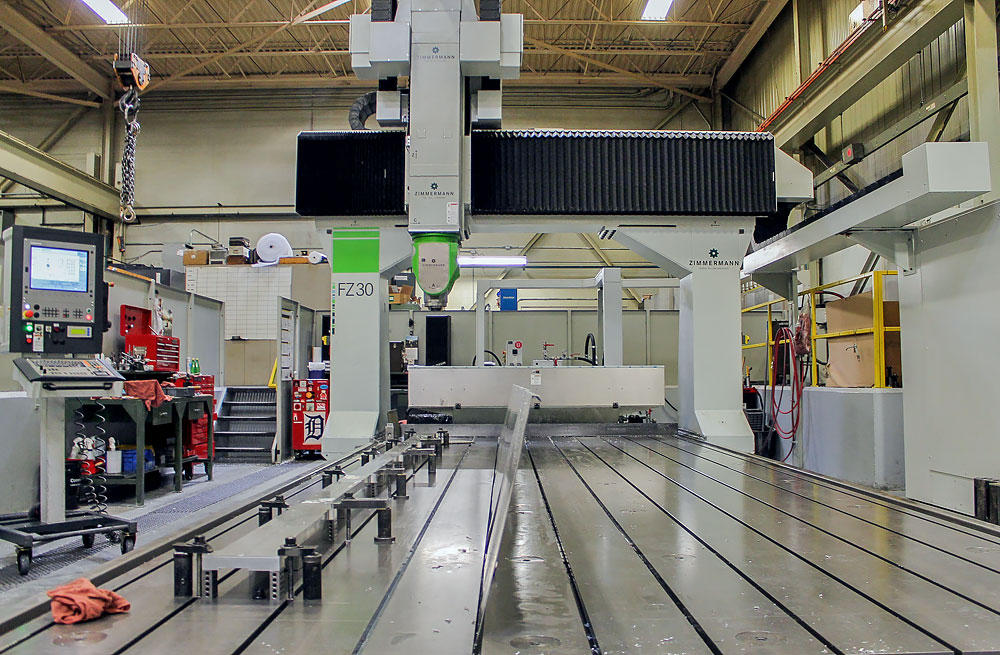

Zimmerman FZ30

Zimmerman FZ30

X 157″ / Y 92.9″ / Z 52″
Table: X 180″ / Y 82.5″
Load Capacity: 40,000lbs

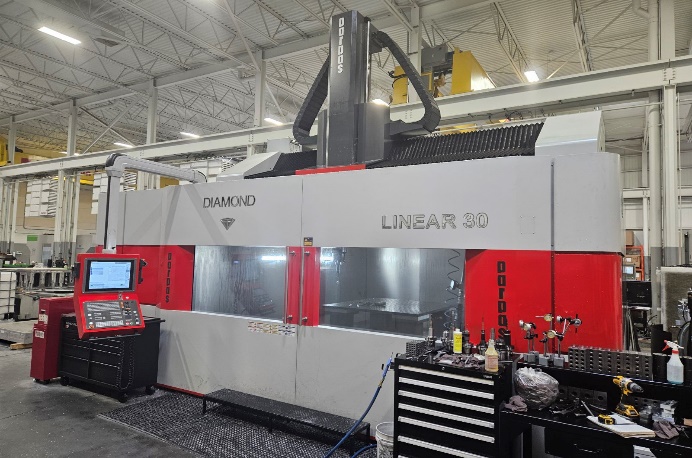

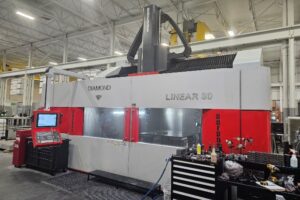

Parpas Diamond Linear 30 #3

Parpas Diamond Linear 30 #3

X 118″ / Y 102.3″ / Z 47.34″
Table: X 110.23″ / Y 112″
Load Capacity: 80,000lbs

Zimmerman FZ30

Zimmerman FZ30

X 236″ / Y 132″ / Z 59″
Table: X 270″ / Y 122″
Load Capacity: 60,000lbs

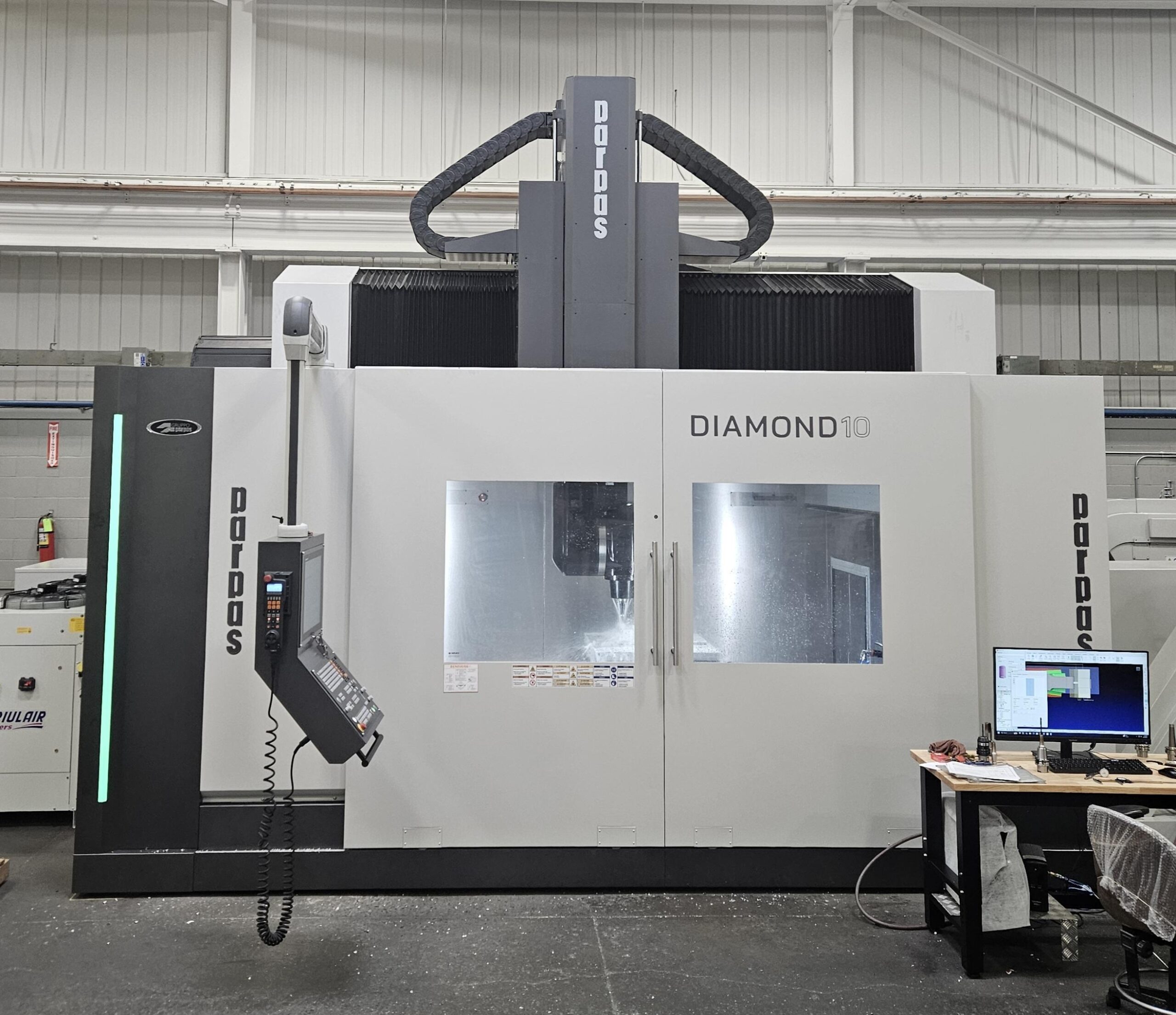

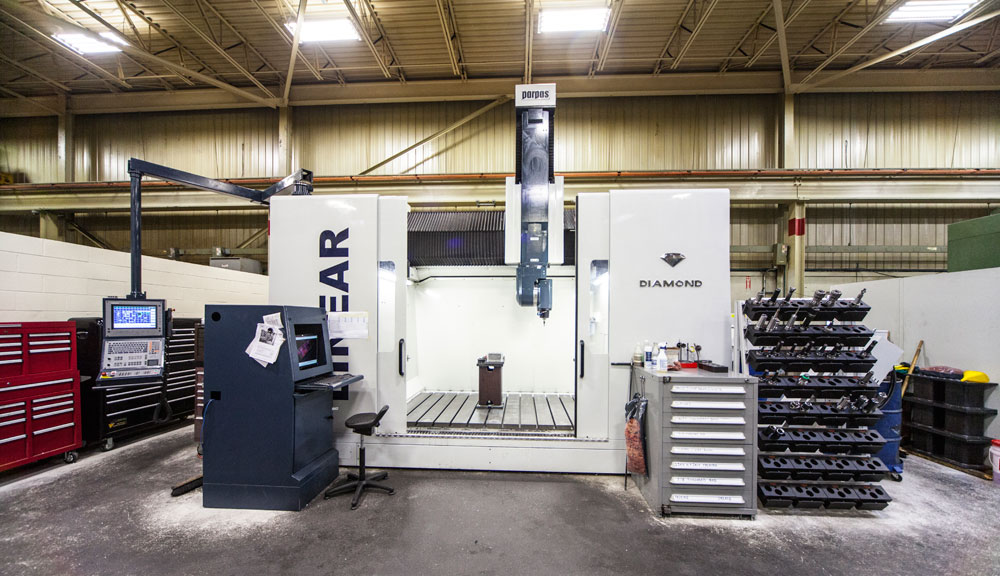

Parpas Diamond #1

Parpas Diamond #1

X 95″ / Y 67.7″ / Z 39″
Table: X 90″ / Y 63″
Load Capacity: 48,400lbs

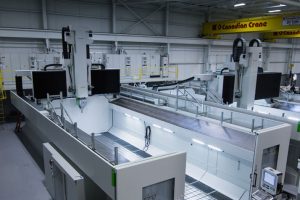

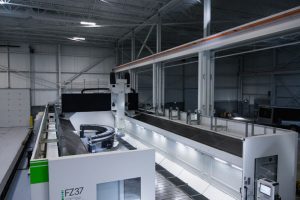

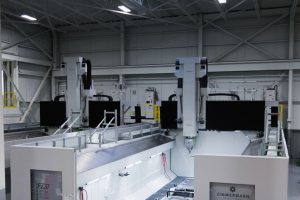

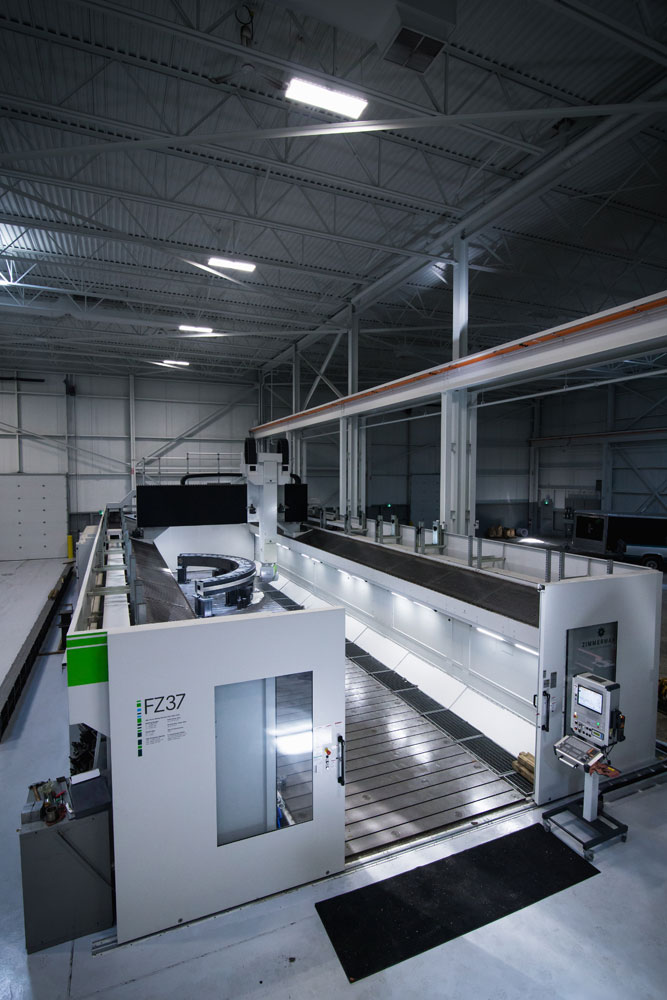

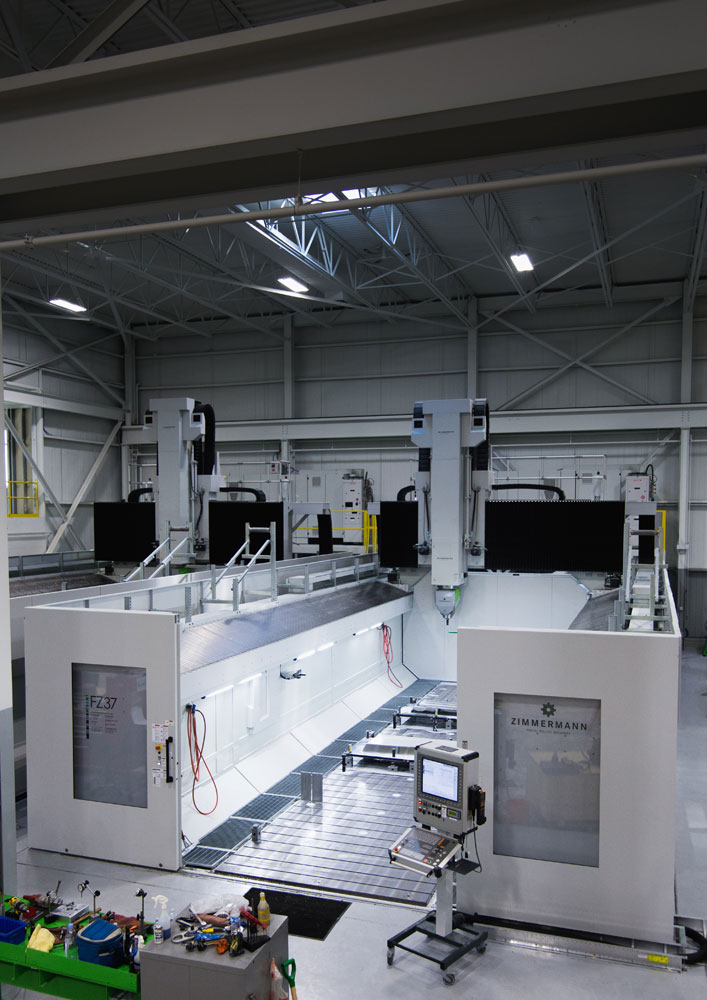

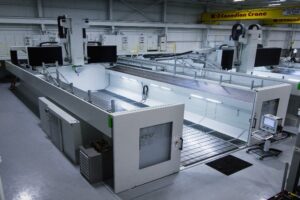

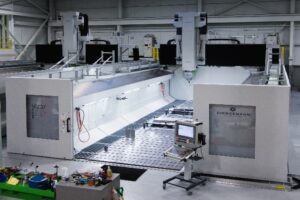

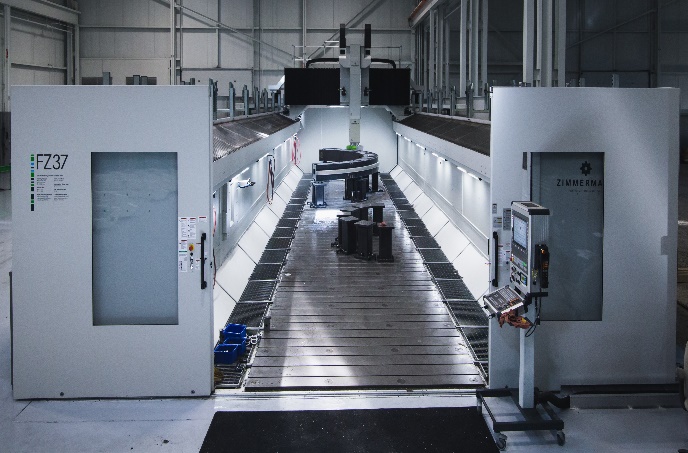

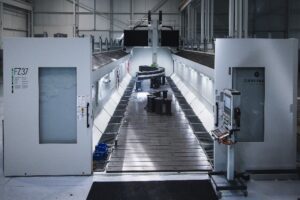

Zimmerman FZ37

Zimmerman FZ37

X 630” / Y 138” / Z 59” Daylight 74″
Table: X 687” / Y 118”
Load Capacity: Unlimited

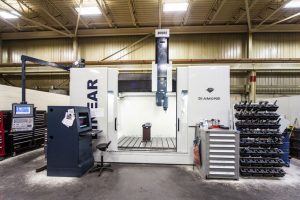

Parpas Diamond #2 -5 axis

Parpas Diamond #2

X 95″ / Y 67.7″ / Z 39″
Table: X 90″ / Y 63″
Load Capacity: 48,400lbs

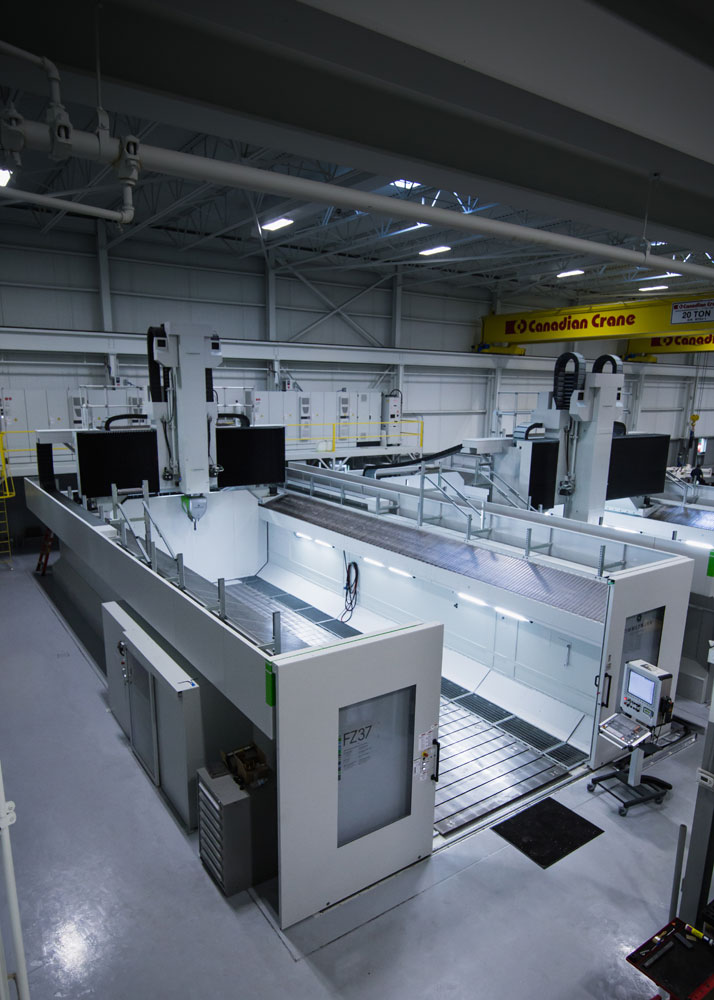

Zimmerman FZ37

Zimmerman FZ37

X 394” / Y 118” / Z 73.75” Daylight 74.75″
Table: X 431” / Y 98”
Load Capacity: Unlimited

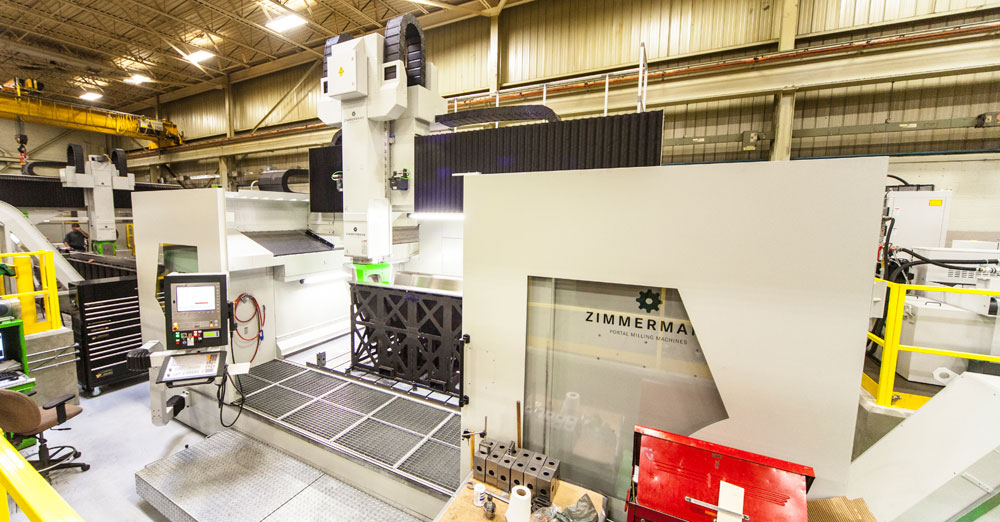

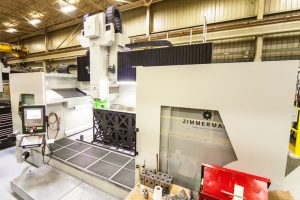

Zimmerman FZ33 (Compact)

Zimmerman FZ33 (Compact)

X 98″ / Y 118″ / Z 49″
Table: X 98.4” / Y 128”
Load Capacity: 132,000lbs

Zimmerman FZ37

Zimmerman FZ37

X 394” / Y 118” / Z 73.75” Daylight 74.75″
Table: X 431” / Y 98”
Load Capacity: Unlimited

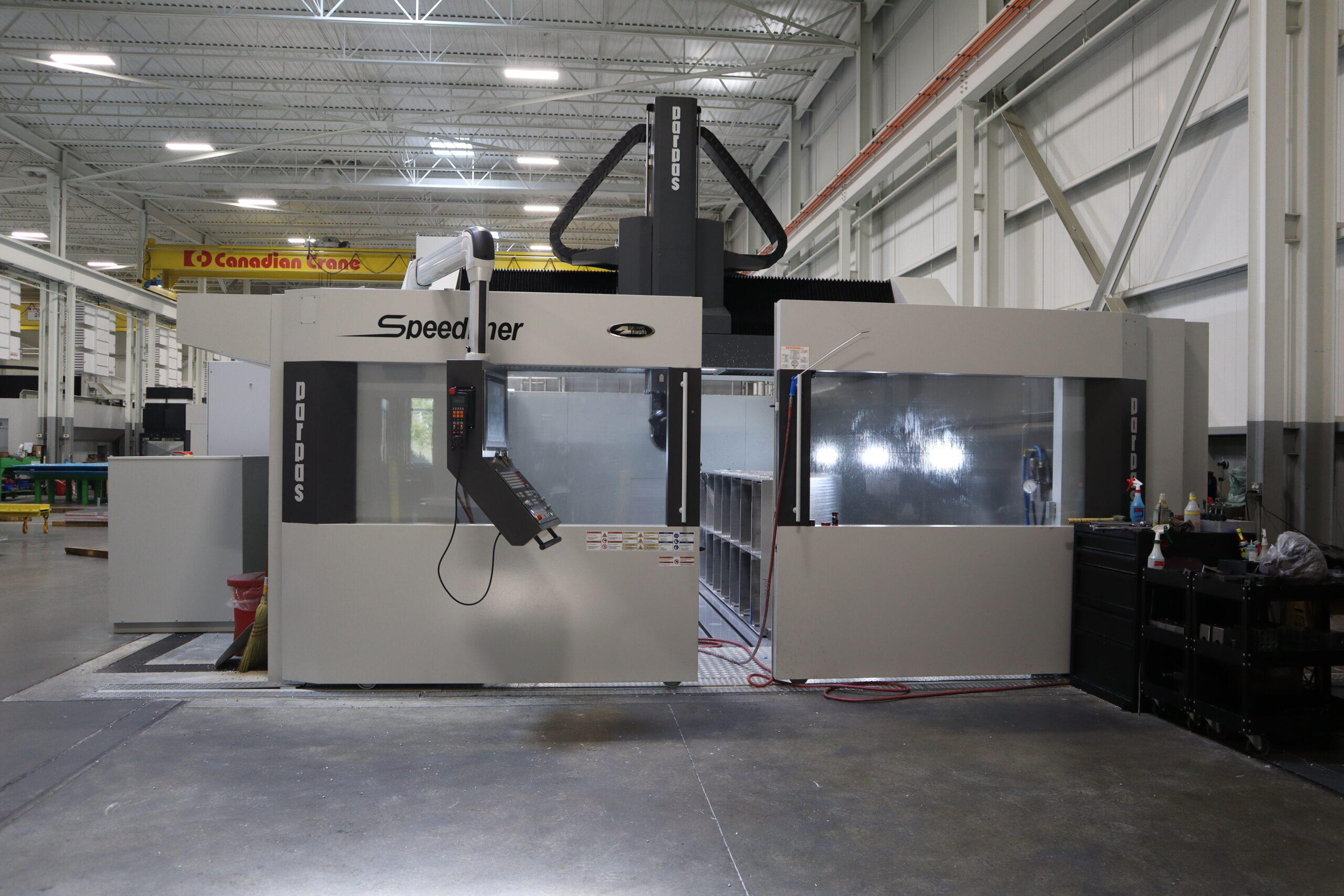

Parpas Speedliner

Parpas Speedliner

X 236” / Y 125.98” / Z 55.1”
Table: X 236.2” / Y 98.425”

3+1 AXIS PALLET CHANGER

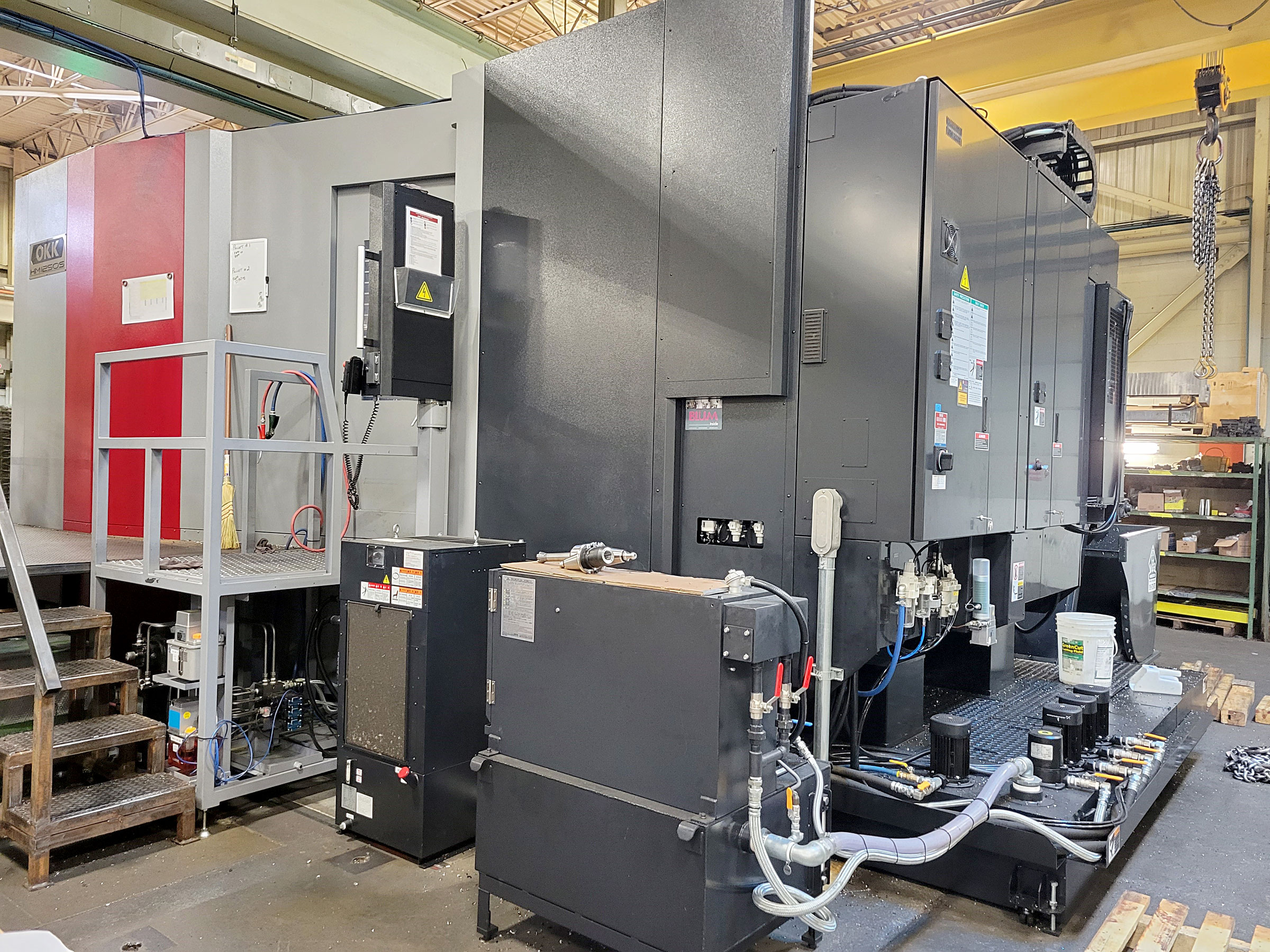

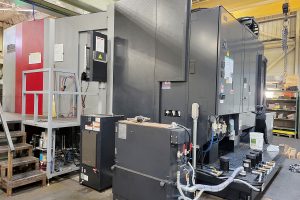

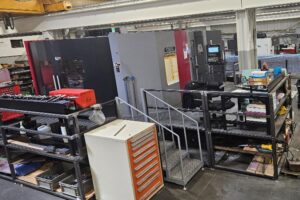

OKK HM1250S

OKK HM1250S

X 66.929” / Y 55.118” / Z 48.818″
Table: X 49.213” / Y 49.213”
Load Capacity: 5500lbs each table and 6613lbs one table

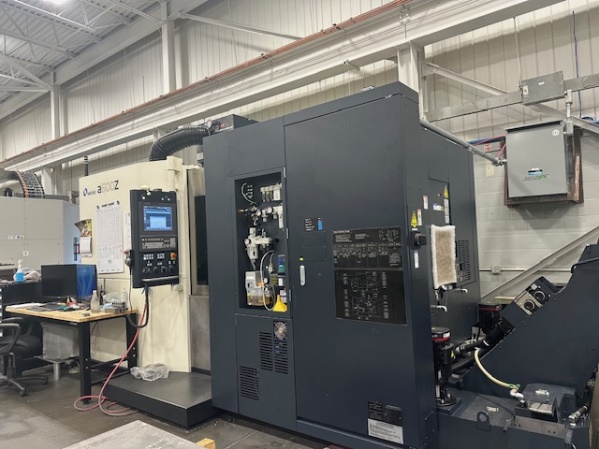

Makino A500Z 5 Axis

Makino A500Z 5 Axis

X: 28.7" / Y: 29.5" / Z: 27.6"
Table: X: 19.7" / Y: 19.7"
Max Load: 880lbs
Max RPM/ IPM: 14000/ 2362

3-AXIS HIGH SPEED

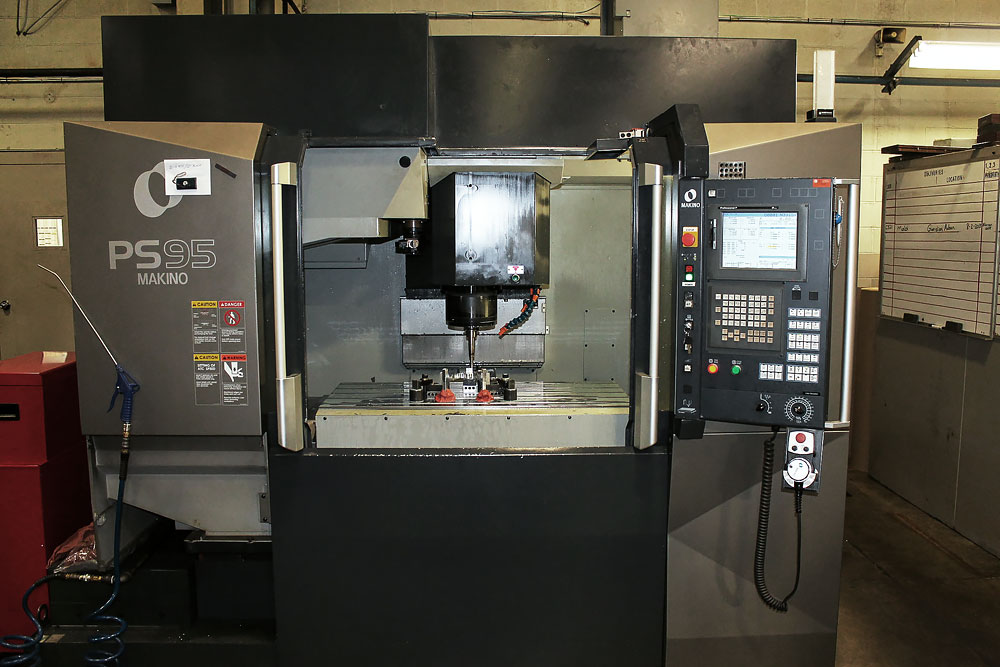

Makino PS95

Makino PS95

X 36″ / Y 20″ / Z 18″
Table: X 46″ / Y 20″
Load Capacity: 2,500lbs

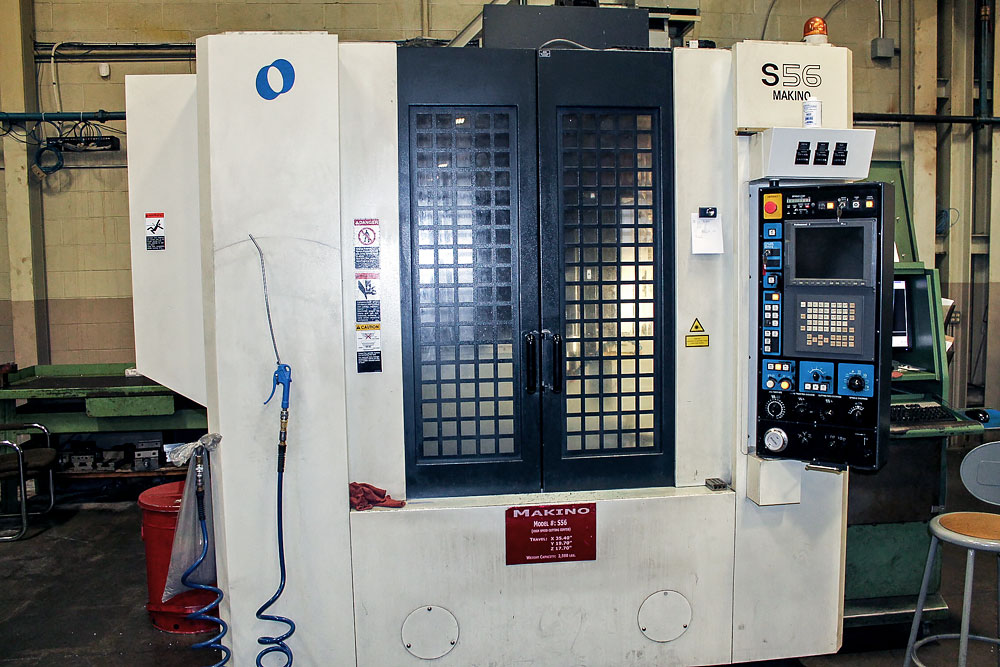

Makino S56

Makino S56

X 35.4″ / Y 19.7″ / Z 17.7″
Table: X 39.5″ / Y 19.5″
Load Capacity: 2,500lbs

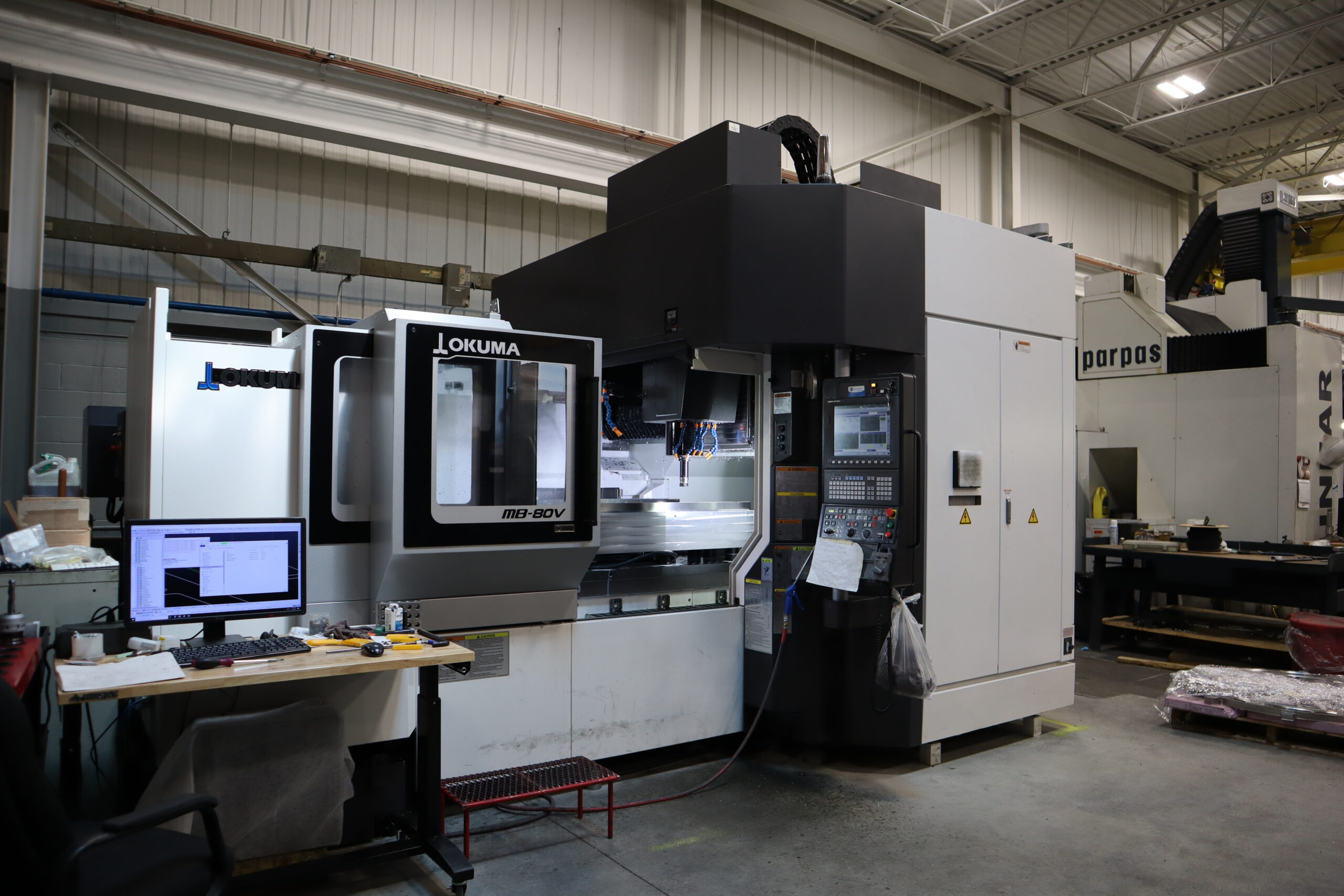

Okuma M8-80V

Okuma M8-80V

X 62.99” / Y 41.34” / Z 23.62”
Table: X 62.99” / Y 31.50”
Load Capacity: 5,511lbs

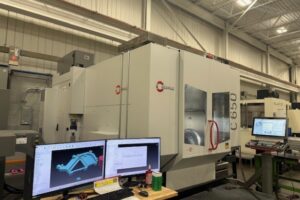

Hermle C650

Hermle C650

Max Travel = X: 41.3" / Y: 35.4" / Z: 23.6"
Table = 31.5 Dia
Max Load = 6613 lbs
Max RPM/ IPM = 20000/ 1375

Quality

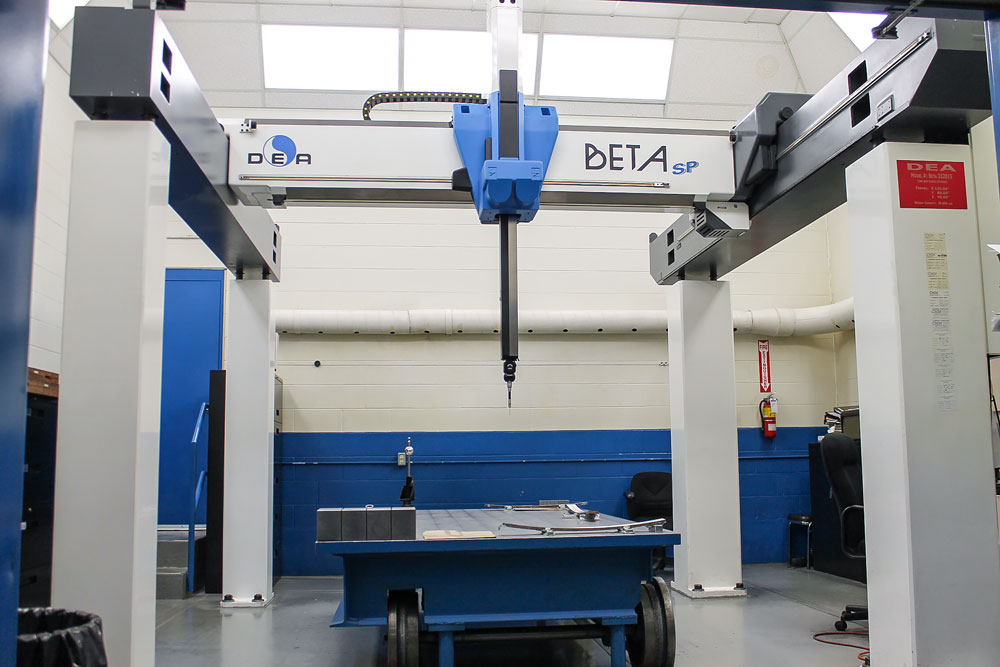

DEA Beta SP Automatic CMM

DEA Beta SP Automatic CMM

X 123″ / Y 80″ / Z 40.5″
Load Capacity: 30,000lbs

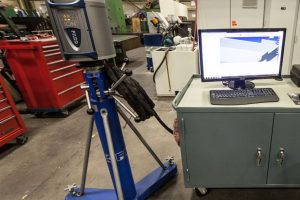

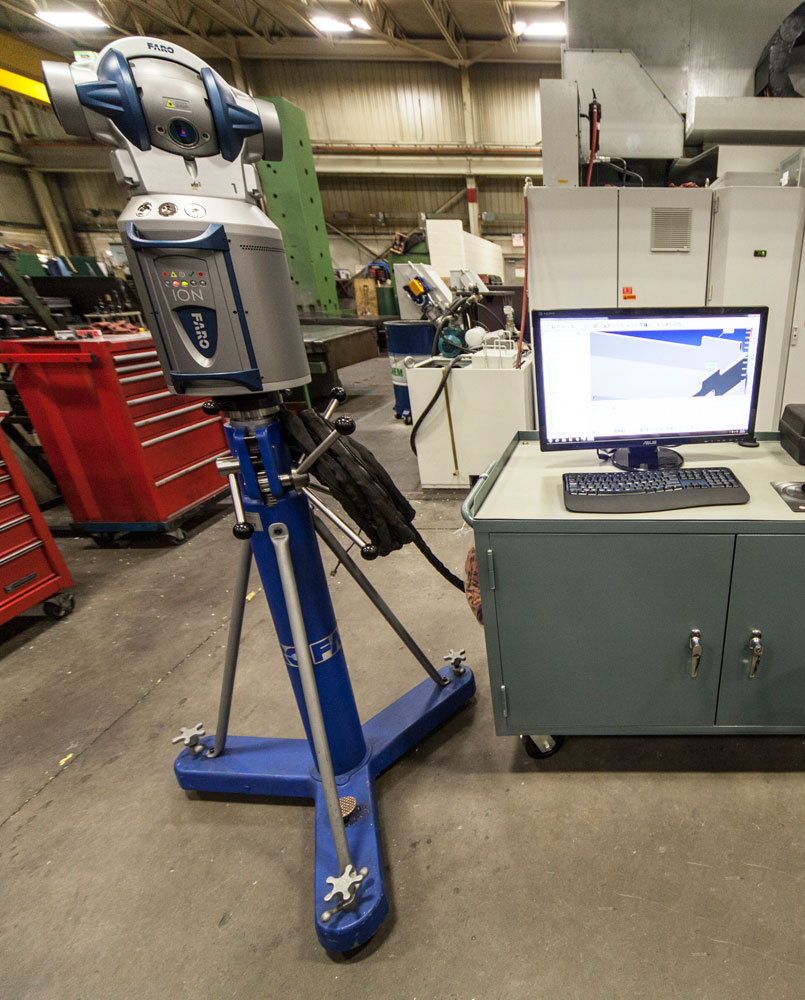

FARO ION Laser Tracker

FARO ION Laser Tracker

Maximum working range: 180′ Horizontal envelope: +/- 270′ Vertical envelope: 125′ (+72.5′ to -52.5′)

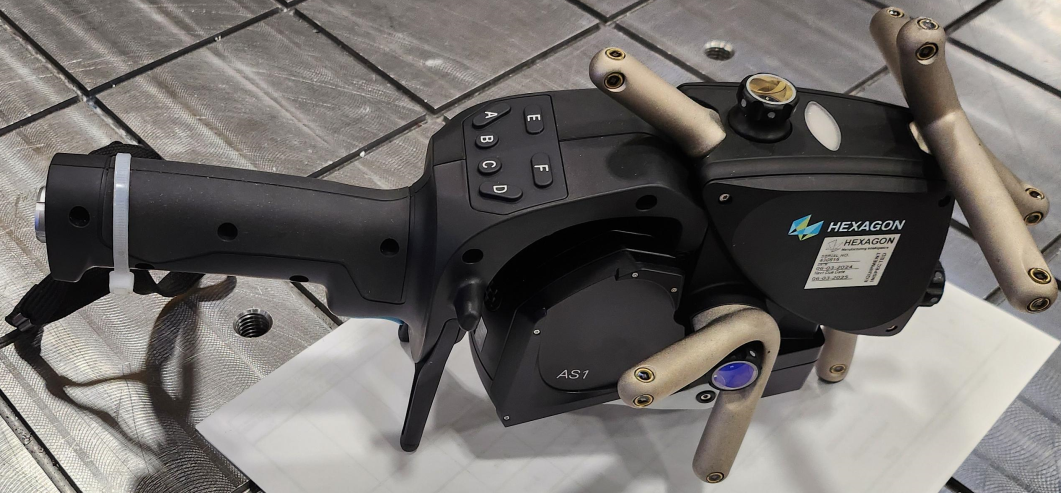

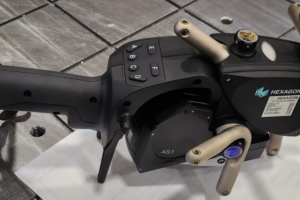

Hexagon AS1 Absolute Blue light Scanner

Hexagon AS1 Absolute Blue Light Scanner

Measurement accuracy to within just 50 microns (0.0023”) across the entire 60-metre diameter measurement volume from the tracker.

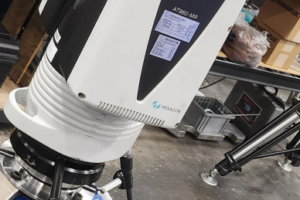

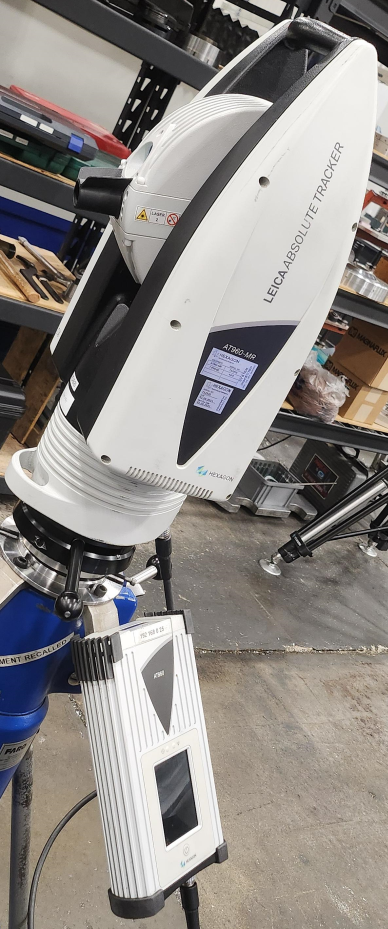

Leica Absolute Tracker AT960

Leica Absolute Tracker AT960

With a 3D measurement volume of up to 40 metres in diameter and a 6DoF measuring volume of up to 20 metres in diameter.
Measurement range: Up-to 40 m (3D)
From 1.2 to 20 m (6D)

Waterjet

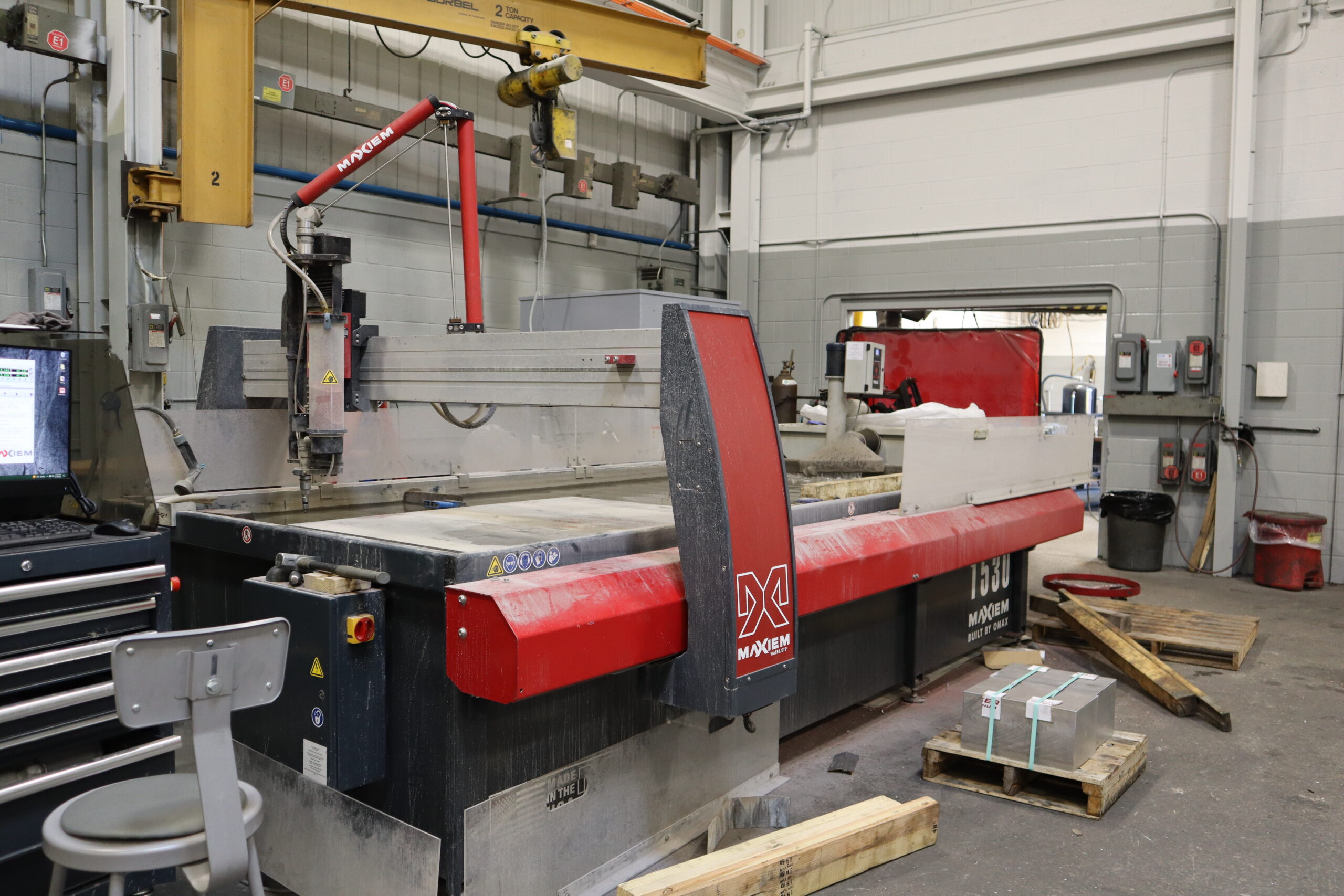

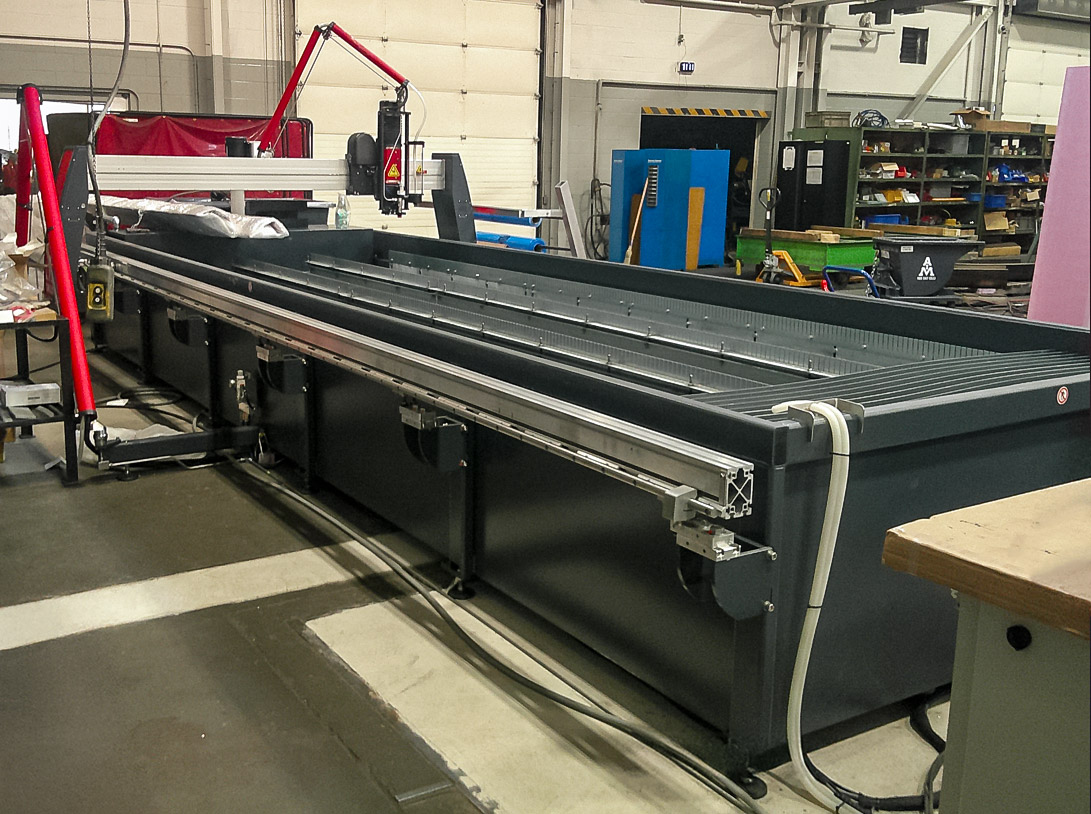

Maxiem 1530

Maxiem 1530

X 10″ / Y 5'2″ / Z 12″
Table: X 12'2″ / Y 5'8″
Load Capacity: 300lbs
